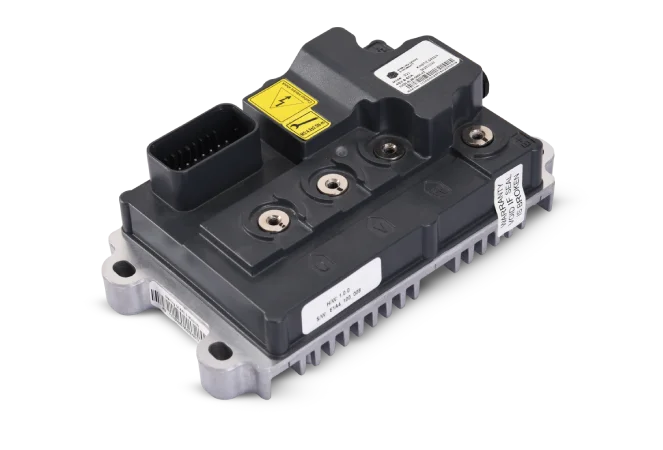

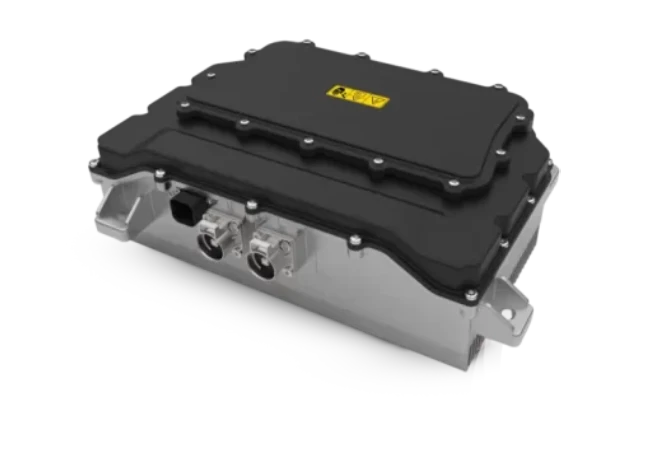

D03
Powering the Future of Fast & Agile Urban Mobility
The D03 is a high-performance Motor Control Unit designed for electric two-wheelers and light EVs operating at 48V /60V /72V /96V. With a peak power of up to 10kW, it is ideally suited for electric motorcycles, scooters, golf carts and Electric Three-Wheeler Loader. Engineered for durability and efficiency, the D03 delivers smooth acceleration, responsive control, and seamless integration across various EV platforms.
- Nominal Voltage 48/60/72Vdc
- Rated Power (kW) 3/4/4.5/5.5kW
- Peak Power (kW) 5.5/6/8/10kW
- Communication CAN
- Motor Feedback Sensor Hall, ABZ+PWM, AB
- Efficiency (Maximum) 98
- Supported Motors BLDC/PMSM/IM
- Temp Sensor NTC/PTC
- EMI/EMC AIS 004-3
- Thermal Management Air Cooling
- IP Grade IP67
- Operating Temperature `-20˚C to + 55˚C
