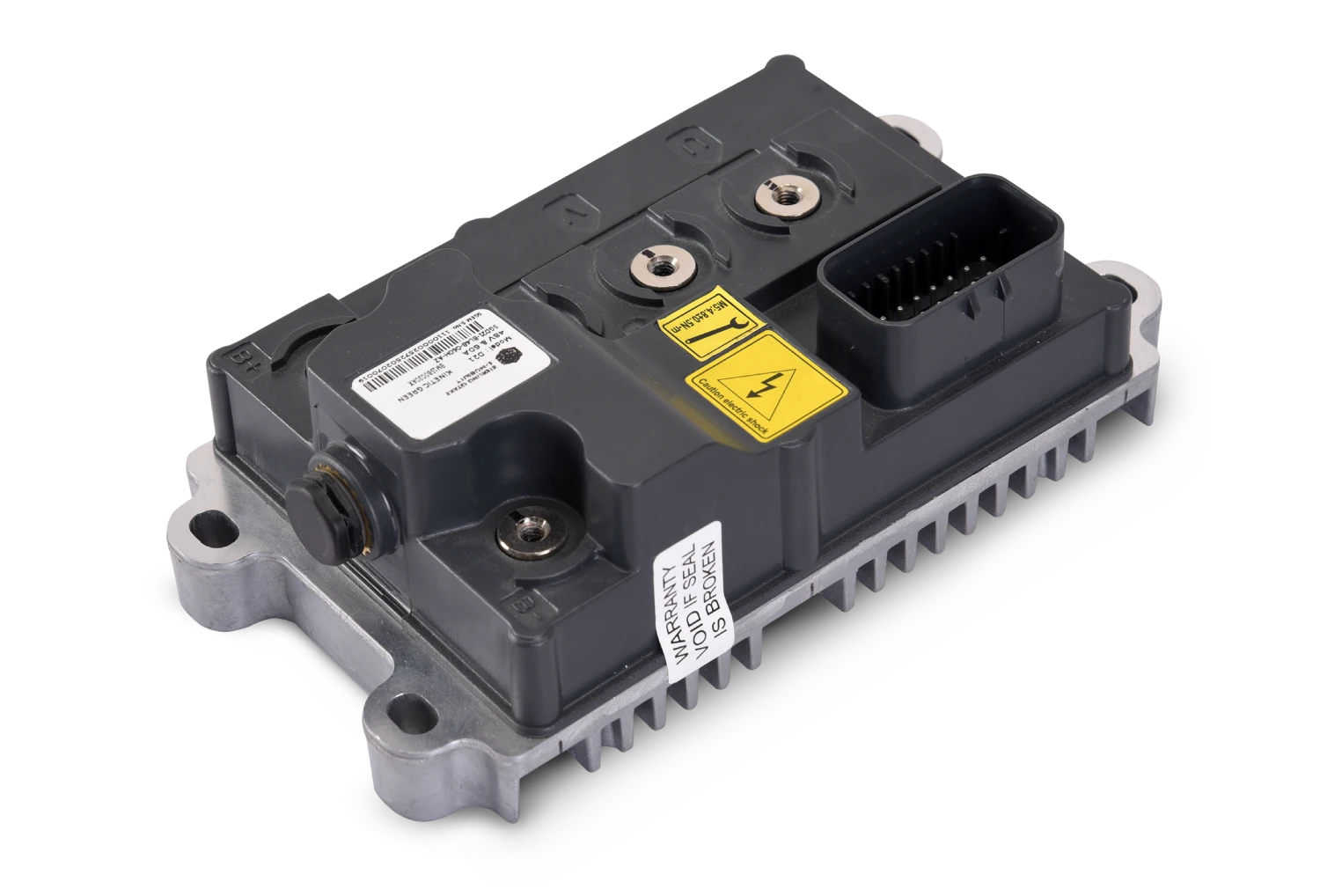

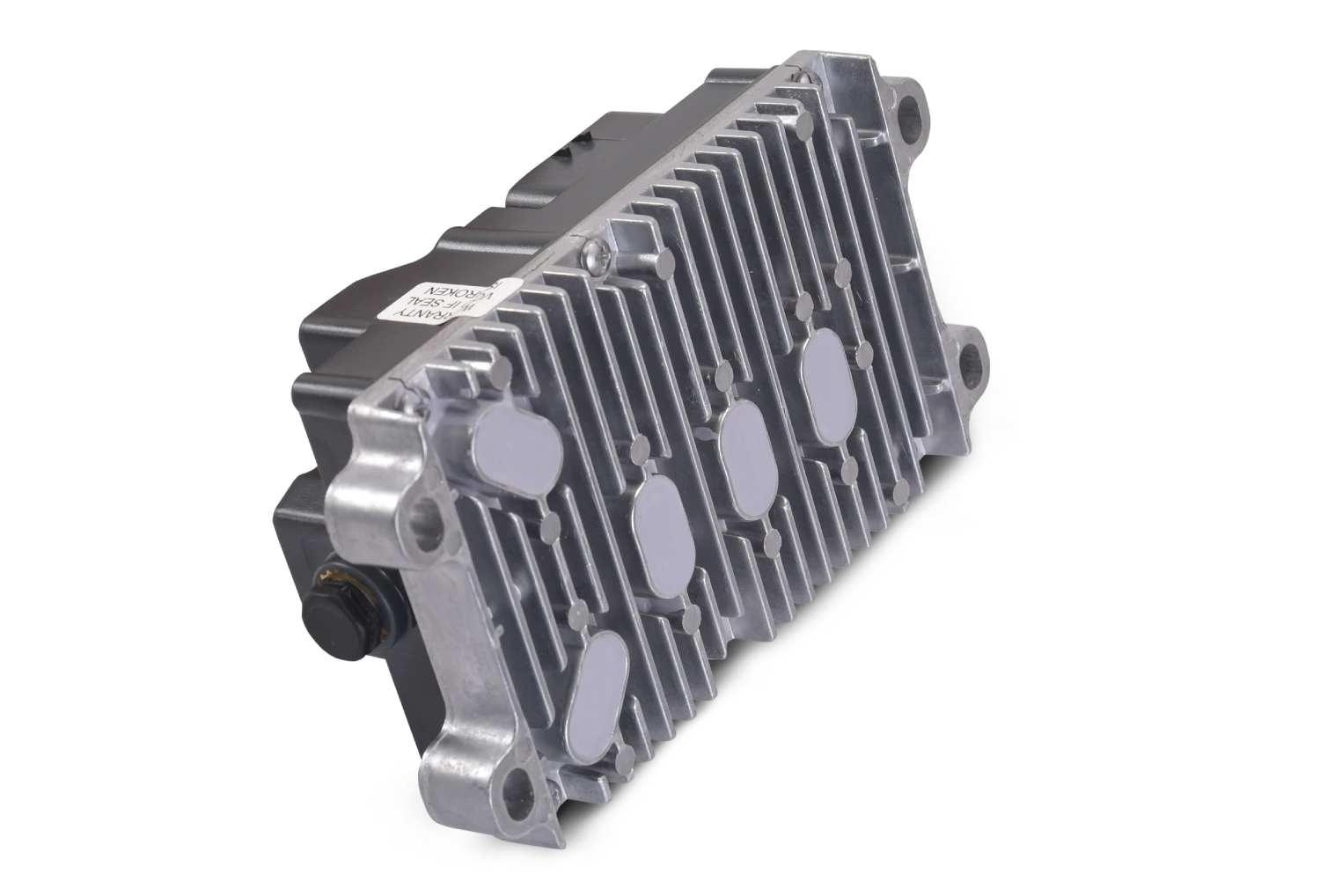

D21
Advanced MCUs for Diverse EVs
The D21 is a robust Motor Control Unit tailored for low-speed electric two-wheelers. With support for 48V/60V and a peak power of 4kW rated power, it is well-suited for electric mopeds and light utility applications. Built for efficiency and dependable operation, the D21 ensures smooth performance across varied urban use cases.
- Nominal Voltage 48/60Vdc
- Rated Power (kW) 2kW
- Peak Power (kW) 4kW
- Communication CAN
- Motor Feedback Sensor Hall, ABZ+PWM, AB
- Efficiency (Maximum) 98
- Supported Motors BLDC/PMSM/IM
- Temp Sensor NTC/PTC
- EMI/EMC AIS 004-3
- Thermal Management Air Cooling
- IP Grade IP67
- Operating Temperature `-20˚C to + 55˚C
