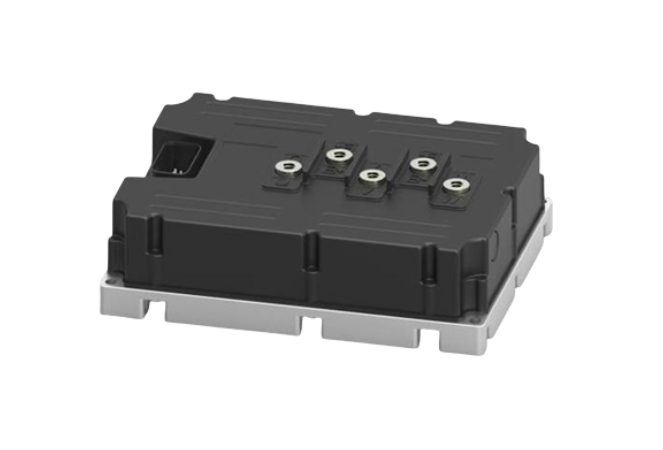

D20
The D20 is a robust Motor Control Unit designed for electric vehicle applications. With support for 60-108V and a peak power of 40kW and rated power of 20kW, it is well-suited for high-performance electric mobility applications. Supporting PMSM and IM motors, the D20 offers high efficiency, advanced motor feedback compatibility, and reliable performance across demanding operating conditions.
- Nominal Voltage (V) 60-108
- Peak Power (kW) 40
- Rated Power (kW) 20
- Communication CAN
- Motor Feedback Sensor) Resolver, Sin/cos, ABZ+PWM, Hall, AB
- Efficiency (Maximum) 98%
- Supported Motors PMSM, IM
- Temp Sensor NTC, PT100, PT1000 and KTY84
- EMI/EMC AIS 004 Part 3
- Thermal Management Natural cooled
- IP Grade IP66
- Operating Temperature -20℃~+55℃
