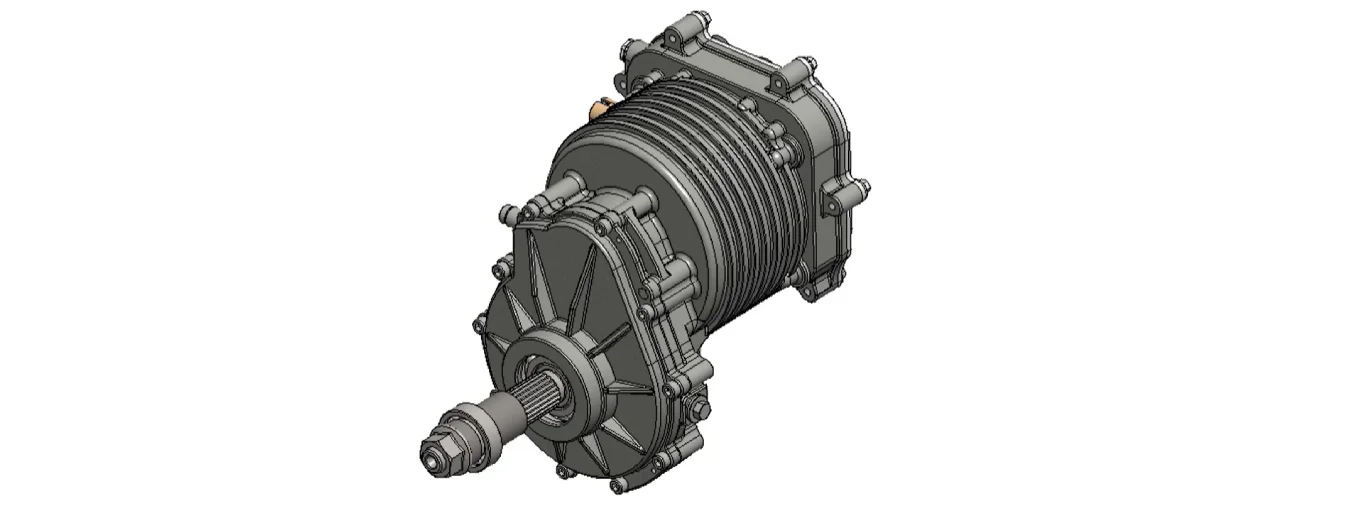

D15 (Motor + Motor Control Unit + Gear Box)
Powering the Future of Fast & Agile Urban Mobility
The D15 is a compact Integrated Drive Unit that combines a high-efficiency Motor, Motor Control Unit, and Gearbox. Delivering a peak power of 6.5kW and a torque of 40Nm, it features a gear ratio of 5.86, making it ideal for high-speed electric two-wheelers. The D15 is engineered to offer smooth acceleration, efficient power delivery, and ease of integration for next-gen EV platforms.
| Electrical Characteristics | |
|---|---|
| Rated Operating Voltage | 48V DC |
| Rated Speed | 3000RPM |
| Peak Speed | 5500RPM |
| Rated Torque | 9.2Nm |
| Peak Torque | 40Nm |
| Rated Power | 3kW |
| Peak Power | 6.5kW |
| Output Frequency Range | 0.00~1000Hz |
| Cooling Characteristics | |
|---|---|
| Cooling Method | Natural cooling |
| Installation Place | A position with good ventilation and heat dissipation, with wind speed > 3m/s |
| Control Characteristics | |
|---|---|
| Communication Method | CAN bus communication |
| Control Type | Vector control: speed control or torque control |
| Encoder Type | Magnetic encoder |
