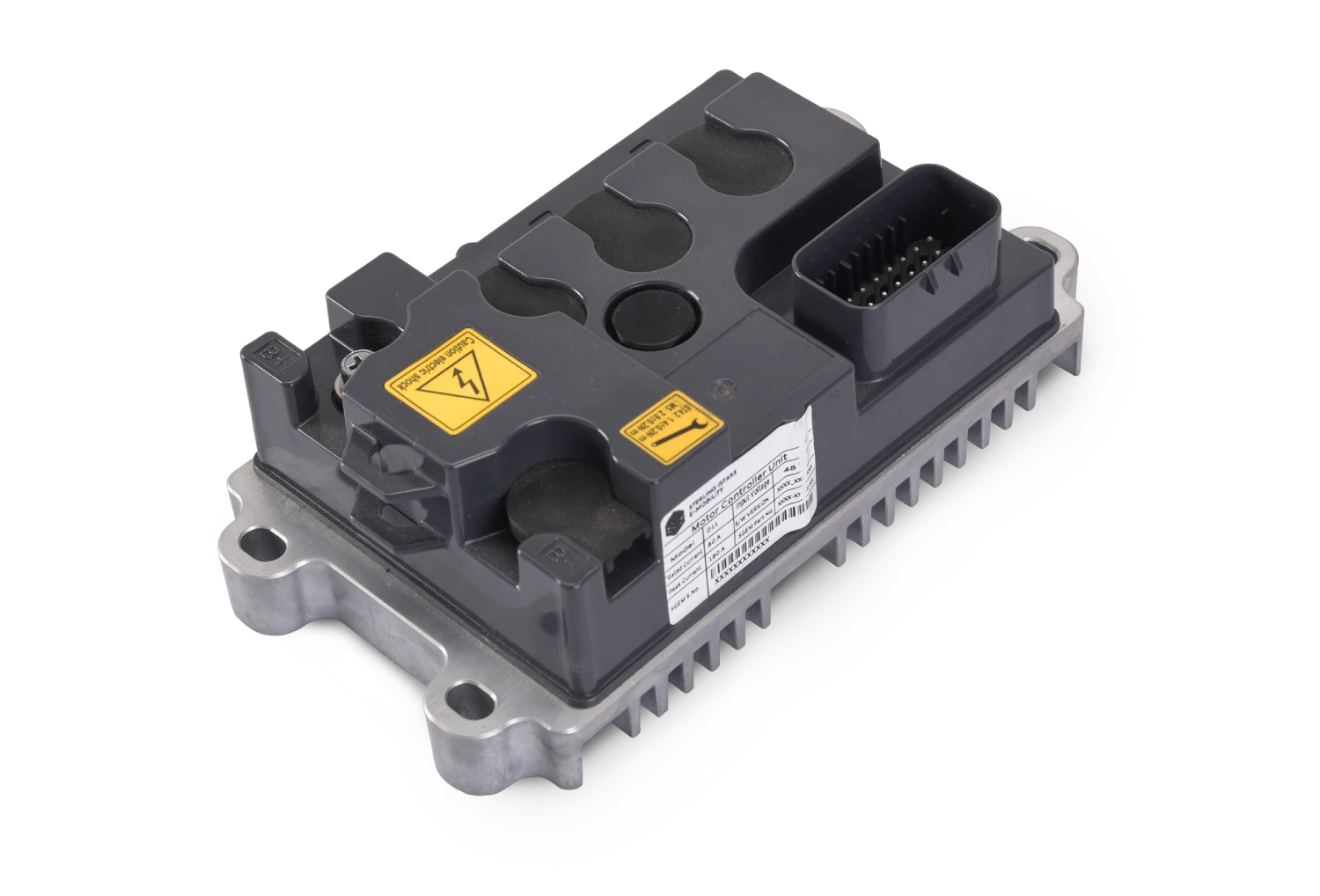

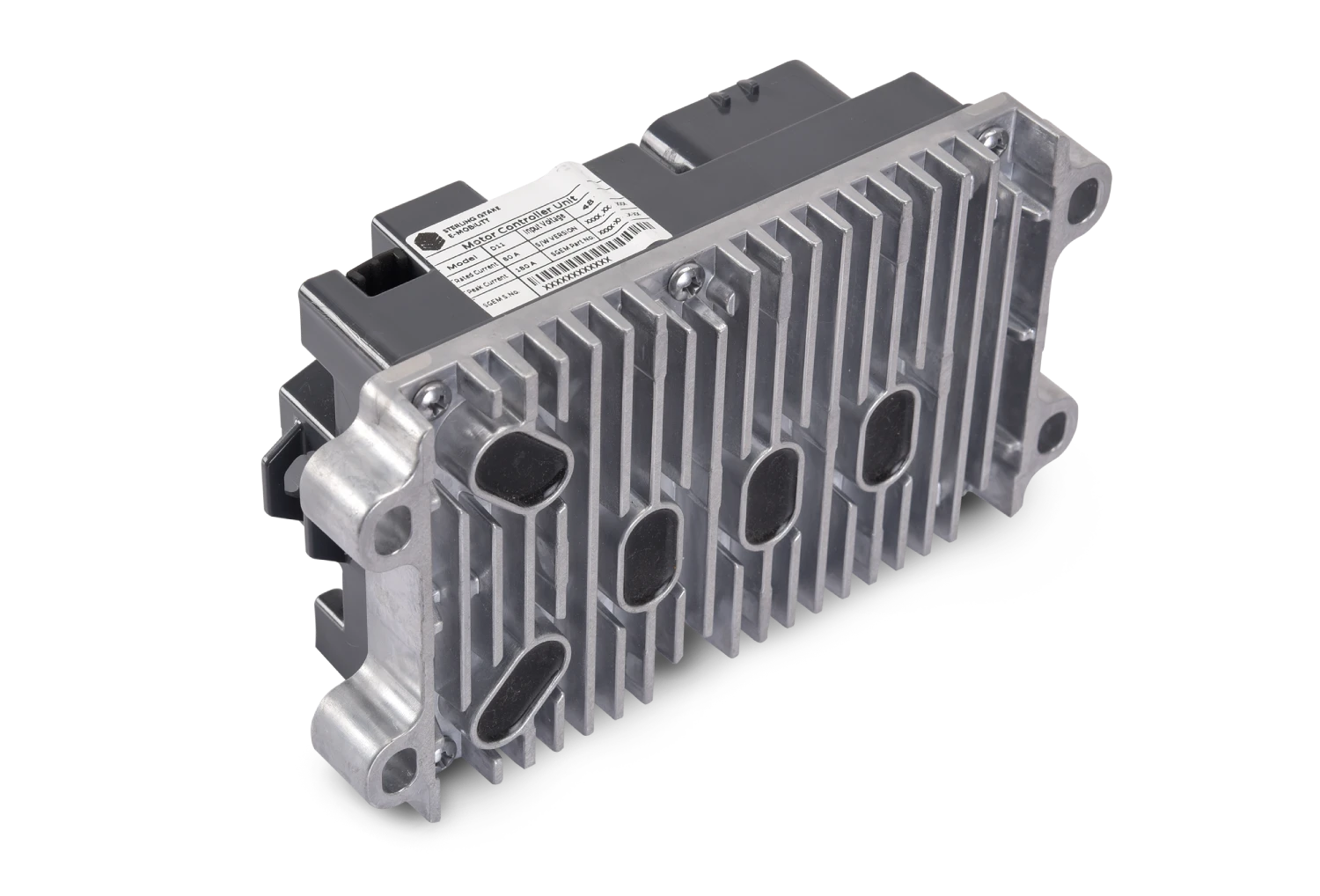

D11
Advanced MCUs for Diverse EVs
The D11 is a high-efficiency Motor Control Unit built for high-speed electric two-wheelers and specialty light EVs such as lawn mowers. Operating at 48V/60V with a peak power of 5.5kW, it delivers smooth acceleration, robust performance, and reliable integration across demanding applications.
- Nominal Voltage 48/60Vdc
- Rated Power (kW) 3kW
- Peak Power (kW) 5.5kW
- Communication CAN
- Motor Feedback Sensor Hall, ABZ+PWM, AB
- Efficiency (Maximum) 98
- Supported Motors BLDC/PMSM/IM
- Temp Sensor NTC/PTC
- EMI/EMC AIS 004-3
- Thermal Management Air Cooling
- IP Grade IP67
- Operating Temperature `-20˚C to + 55˚C
